CISCO UBR7200-NPE-G1
Cisco Systems introduces its newest processor—the Cisco uBR7200-NPE-G1 Network Processing Engine. The Cisco uBR7200-NPE-G1 dramatically increases processor capacity, meeting increasing performance demands while offering exceptional value and flexibility. The Cisco uBR7200-NPE-G1 is supported on the Cisco uBR7246VXR Universal Broadband Router. The Cisco uBR7200-NPE-G1 is the highest-performance processor in the family of Network Processing Engines (NPEs) for the Cisco uBR7246VXR.
Description

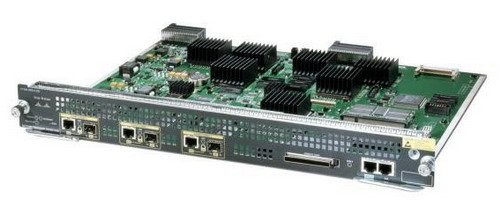

The Cisco uBR7200 Series continues to upgrade its performance levels, ensuring customers can easily and cost-effectively upgrade their networks to meet demands of next-generation networking. The Cisco uBR7200-NPE-G1 (see Figure 1) provides dramatically increased performance compared to the Cisco NPE-400, addressing increased demands for performance and flexibility.
Benefits of the Cisco uBR7200-NPE-G1 include:
•Provides 2x performance improvement1 over the Cisco NPE-400
•Offers three on-board Gigabit Ethernet/Fast Ethernet ports that do not take up backplane bandwidth
•Doubles the amount of available DRAM (to 1 GB)
•Eliminates the requirement for an I/O controller card
•Adds two new I/O controller buses that do not take up backplane bandwidth
•Assures investment protection through processor modularity and upgradeability
•Provides improved price performance
Features/Benefits
Performance enhancement
Up to 2x performance improvement1 over the Cisco NPE-400
Three fixed 10/100/1000 Mbps ports; RJ-45 or Gigabit Interface Converter (GBIC) directly on the processor
Maximizes LAN/WAN connectivity and performance without taking up backplane capacity
256 MB (default), 512 MB, and 1 GB of DRAM available
Doubles the amount of DRAM available on the Cisco uBR7246VXR; more memory offers the following benefits:
•Supports more routing tables
•Supports more Multiprotocol Label Switching (MPLS) virtual private network (VPN) routing/forwarding (VRF) instances
•Supports more sessions for broadband aggregation
•Enables higher scalability on features such as NetFlow, network address translation (NAT), and access control lists (ACLs)
Incorporates functionality of the I/O controller
Because the Cisco uBR7200-NPE-G1 incorporates all the functionality of an I/O controller (Flash memory and auxiliary and console ports), customers are no longer required to use an I/O controller. That saves them money. If customers desire to use an I/O controller, they can.
Supports a third PCI bus to the I/O controller slot
Frees current I/O controller ports from sharing backplane bandwidth, allowing two PCI buses to be dedicated to port adapter and line card slots
Modular
Enables maximum investment protection through upgradeability
Supports Cisco IOS® Software
Supports IP network services including qualify of service (QoS), MPLS, and security
1Actual performance improvement varies depending on factors including traffic and usage patterns, number of subscribers, and features turned on.
ports and memory options:
LAN/WAN Ports
Three LAN/WAN ports are available on the Cisco uBR7200-NPE-G1.
GBICs The Cisco uBR7200-NPE-G1 supports three types of GBICs: SX, LX/LH, and ZX.
DRAM Memory
The Cisco uBR7200-NPE-G1 supports 256 MB (default), 512 MB, and 1 GB of DRAM memory. There are two DRAM memory slots, so 256 MB of memory consists of two 128 MB memory SODIMMs; 512 MB consists of two 256 MB memory SODIMMs, and 1 GB consists of two 512 MB memory SODIMMs.
The type of DRAM memory being used on the Cisco uBR7200-NPE-G1 is DDR memory. DDR memory provides high performance memory access rates. With DDR memory, it is not necessary to have the same size SODIMM in each memory bank on the Cisco uBR7200-NPE-G1.
Compact Flash Memory
The Cisco uBR7200- NPE-G1 supports 64 MB (default), 128 MB and 256 MB of Compact Flash memory. The Compact Flash memory used on the Cisco uBR7200- NPE-G1 is the same as that used with the Cisco 7200, 7300 and 7400 Series routers.
Console and Auxiliary Ports
Because the Cisco uBR7200-NPE-G1 has a console port and an auxiliary port, and handles functionality of an I/O controller, the need for an I/O controller is eliminated. An I/O controller, however, can still be used.
If an I/O controller is detected in the I/O controller slot, all I/O controller functionality defaults to the I/O controller. The I/O controller functionality of the Cisco uBR7200-NPE-G1 is disabled.
Cable Management Bracket
The Cisco uBR7200-NPE-G1 is the first NPE on the Cisco uBR7246VXR that requires external cabling (fiber or copper) for different types of ports, including GBIC, RJ-45, console, and auxiliary. There will be cables, therefore, on both sides of the Cisco uBR7246VXR. To ensure that customers are offered the appropriate and sufficient cable management support for the Cisco uBR7246VXR, Cisco has designed a cable management bracket for the Cisco uBR7200-NPE-G1. Cisco offers this cable management bracket as an option for the Cisco uBR7200-NPE-G1.
Cisco uBR7200-NPE-G1 Cable Management Bracket
Product Specifications: Compatibility
Chassis
The Cisco uBR7200-NPE-G1 is supported on the Cisco uBR7246VXR which belongs to the Cisco uBR7200 Series family.
I/O Controllers
Although a Cisco uBR7246VXR chassis with a Cisco uBR7200-NPE-G1 does not require the use of an I/O controller, an I/O controller can still be used.
The Cisco uBR7200-NPE-G1 is supported with the following Cisco uBR7200 Series I/O controllers:
•Cisco uBR7200-I/O
•Cisco uBR7200-I/O-FE
•Cisco uBR7200-I/O-2FE/E
Port Adapters
The Cisco uBR7200-NPE-G1 is compatible with all port adapters currently available on the Cisco uBR7246VXR, except for the Cisco PA-2FEISL-TX and PA-2FEISL-FX port adapters.
IOS Software
The Cisco uBR7200-NPE-G1 is supported in Cisco IOS Software Release 12.2(11)CX. This release is based on the Data over Cable Service Interface Specification (DOCSIS) 1.1 and European DOCSIS (EuroDOCSIS) 1.1-qualified Cisco IOS Software train. Support for the Cisco uBR7200-NPE-G1 in Cisco IOS Software Release 12.2(x)BC and 12.1(x)EC follows product release.
Cisco IOS Boot Image
The mandatory Boot image for Cisco uBR7200-NPE-G1 is "ubr7200-kboot-mz.122-xx.CX.bin (where xx = IOS 12.2CX release #)". It loads on an on-board flash of the Cisco uBR7200-NPE-G1.
Cisco uBR7200-NPE-G1 Key Features
Hardware and Software Features
•700 MHz Broadcom BCM12500 processor
•512 KB NVRAM, 16 MB Bootflash (Note: This size NVRAM and Bootflash are only available when a Cisco I/O controller is not used)
•16 MB L3 cache
•256 MB SDRAM default memory (expandable to 1 GB)
•64 MB of Compact Flash memory (expandable to 256 MB)
•16 MB packet memory on 128 MB or 256 MB SDRAM and 32 MB packet memory on 512 MB or
•1 GB SDRAM
•Error Correcting Code (ECC) support
